Sunday, 1 February 2015

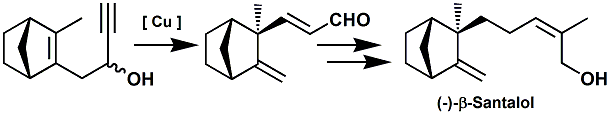

Firmenich's New Enantioselective Synthesis of (-)-beta-Santalol


Charles Fehr and co-workers at Firmenich have designed the "right cat for the desired odor". In WIPO Patent Application WO/2009/141781 (November 26, 2009), they disclose a novel, and seemingly practical, approach to the synthesis of beta-Santalol (the Golden Grail of Sandalwood odor).

See also - Charles Fehr, Iris Magpantay, Jeremy Arpagaus, Xavier Marquet, Magali Vuagnoux, Enantioselective Synthesis of (-)-beta-Santalol by a Copper-Catalyzed Enynol Cyclization-Fragmentation Reaction, Angewandte Chemie, Volume 121, Issue 39, Date: September 14, 2009, Pages: 7357-7359

β-Santalol is an organic compound that is classified as a sesquiterpene. It comprises about 20% of the oil of sandalwood, the major component being α-santalol. As of 2002, about 60 tons of sandalwood oil are produced annually by steam distillation of the heartwood of Santalum album.[1]


  1. Karl-Georg Fahlbusch, Franz-Josef Hammerschmidt, Johannes Panten, Wilhelm Pickenhagen, Dietmar Schatkowski, Kurt Bauer, Dorothea Garbe, Horst Surburg "Flavors and Fragrances" in Ullmann's Encyclopedia of Industrial Chemistry, Wiley-VCH, Weinheim: 2002. Published online: 15 January 2003; doi:10.1002/14356007.a11_141.

Out of the woods
Woody fragrances such as Iso E Super, a compound known as a 'floraliser' and used in most new fine fragrances, also rate highly, says Gautier. Some people smell a cedarwood note in Iso E Super, while others perceive it to be musky. The male fragrance Fahrenheit  (Dior, 1988) is 25 per cent Iso E Super while Perles de lalique  (Lalique, 2007) is 80 per cent Iso E Super. The commercial Iso E Super owes its woody smell to a 5 per cent impurity which has an odour threshold about 100 000 times lower than that of the main product.
The sweet scent of success
Alpha- (top) and beta-santalol are constituents of the prized East Indian sandalwood oil

In 1999, Kraft's team at Givaudan isolated this impurity by epoxidation of a commercial Iso E Super and proposed a structure based on NMR spectra. The team came up with a way to synthesise the compound but it was not commercially viable and the structure turned out to be too complex for an alternative synthetic procedure. But out of several synthesised analogues, one had an almost equal odour threshold and smelled even better. What is more, its industrial synthesis is straightforward and it has become a big hit - used by Givaudan as the captive material Georgywood.
However, on strictly cash terms, the most valuable fragrances are the natural products. For example, East Indian sandalwood oil is one of the most precious and expensive perfumery raw materials.
Beta-santalol is the main olfactory constituent of sandalwood oil. It wasn't until 1990 that beta-santalol could be prepared in the lab - this took an 11-step reaction that was unsuitable for industrial scale-up. The best sandalwood oil substitutes are derivatives of alpha-campholenic aldehyde, prepared from inexpensive alpha-pinene, most of which is a byproduct of the paper industry.
'The components in sandalwood oil are not easy to make,' acknowledges Gautier. 'But what Firmenich has done is screened all around that kind of structure to try to find woody notes. We have a lot of substitutes so that perfumers can create something close to sandalwood without needing sandalwood oil.' Kraft agrees that there are 'excellent synthetic substitutes' out there. For example, the campholenic aldehyde derivatives typically have a good sandalwood smell. 'The other olfactory parts of natural sandalwood oil - such as the smokey, cedar-like aspects - can easily be added using, for example, cedarwood oil,' says Kraft.
Sandalwood was initially quite cheap (Guerlain's Samsara  contained 25 per cent sandalwood) but overharvesting has led to Indian sandalwood trees being listed on the World Conservation Union's threatened species red list.
'There's still a good market for sandalwood oil and the price has gone, in the past six or seven years, from $1000 [£680] per kg to over $2000,' says Leffingwell. One Australian firm, TFS Corporation, has taken the initiative and planted over 1700 hectares of the endangered Indian sandalwood (Santalum album  ) in plantations in Western Australia.
A) Preparation of β-santalol (via Wittig and hydroxyalkylation reaction)
A solution of butyllithium in hexanes (1.35 M, 11.7 ml, 15.8 mmol) was added over a 15 minutes period to a stirred suspension of ethyltriphenylphosphonium iodide (6.61g, 15.8 mmol) in THF (125 ml) at 00C. The resultant red solution was cooled to -78°C and 3-(2-methyl-3-methylene-bicyclo[2.2.1]hept-2-exo-yl)-propanal (2.55 g, 14.33 mmol) in solution in THF (16 ml) was added over a 15 minutes period. After further 5 minutes at -78°C, a solution of butyllithium in hexanes (1.35 M, 12.7 mL, 17.2 mmol) was added over a 5 minutes period and the mixture was further stirred for 20 minutes at -78°C before allowing to reach 00C in 2 hours. Dry paraformaldehyde (2.60 g, 86.0 mmol) was added in one portion to the deep red homogeneous solution and the mixture was stirred for 30 minutes at 00C and was allowed to reach room temperature. After 1 hour at room temperature the mixture was poured into 5.2 ml of saturated aqueous solution of NH4Cl and extracted twice with CH2Cl2. The organic layer was washed with water and brine, and dried with Na2SO4. The mixture was filtered through a short pad of silica gel with dichloromethane as eluent and solvents were removed under pressure to give a crude. Purification of crude compound was performed by flash chromatography on silica gel with cyclohexane/AcOEt 90/10) as eluent to give pure β-santalol as pale yellow oil. Further bulb to bulb distillation under reduced pressure afforded β-santalol in 50% yield (Z:E=95:5). 1H NMR (CDCl3, 400 MHz): 5.29 (t, J=7.5, IH), 4.73 (s, IH), 4.45 (s, IH), 4.14 (s, 2H), 2.66 (d, J=3.8, IH), 2.12-1.94 (m, 3H), 1.78 (d, J=I.2, 3H), 1.71-1.60 (m, 3H),
1.44-1.36 (m, 2H), 1.32 (br s, IH), 1.27-1.17 (m,3H), 1.04 (s, 3H). 13C NMR (CDCl3, 125 MHz): 166.2, 133.9, 129.0, 99.7, 61.6, 46.8, 44.7, 44.6, 41.5, 37.1, 29.7, 23.7, 23.2, 22.6, 21.2.
B) Preparation of β-santalol (via [1,4] hydrogenation) i) Preparation of a compound (V): 2-methyl-5-(2-methyl-3-methylene-bicyclo[2.2.1] hept-exo-2-yl)-pent-2-enal
3-(2-Methyl-3-methylene-bicyclo[2.2.1]hept-2-exo-yl)-propan-l-al (274.0 mg,
1.54 mmol) was dissolved in toluene (15.0 ml) at room temperature under nitrogen. The mixture was heated to reflux and propionaldehyde (0.4 ml, 1.96 mmol) and aqueous catalytic solution of hexamethyleneimine and benzoic acid (0.12 ml, 0.616 mmol) was separately added in one portion. Once that addition was finished, the mixture was further heated at reflux for 6 hours. The mixture was cooled down to room temperature and extracted twice with brine, the organic layer was dried over MgSθ2, filtered off and concentrated to give a crude which was further purified by flash chromatography with cyclohexane/ AcOEt (95/5) to afford the title compound in 80% yield.
1H NMR: 9.38 (s, IH), 6.48 (dt, J1=?^, J2=1.2, IH), 4.78 (s, IH), 4.49 (s, IH), 2.69 (d, J=3.9, IH), 2.40-2.29 (m, 2H), 2.12 (d, J=3.1, IH), 1.75 (s, 3H), 1.72-1.64 (m, 3H), 1.59-1.51 (m, IH), 1.47-1.36 (m, 2H), 130-1.21 (m, 2H), 1.09 (s, 3H). 13C NMR: 195.2, 165.5, 155.2, 139.1, 100.3, 46.8, 44.8, 44.7, 39.4, 37.1 , 29.6, 24.9, 23.7, 22.6, 9.1.
H) Preparation of a compound (IV): Acetic acid 2-methyl-5-(2-methyl-3-methylene- bicyclo[2.2.1]hept-2-exo-yl)-penta-l,3-dienyl ester To a stirred solution of 2-methyl-5-(2-methyl-3-methylene-bicyclo[2.2.1]hept-2-yl)- pent-2-enal (268.0 mg, 1.23 mmol) in toluene (3.0 ml) were added Ac2O (0.35 ml, 3.70 mmol), Et3N (0.70 ml, 5.02 mmol), and a catalytic amount of DMAP (15.0 mg, 0.1 mmol). The resulting mixture was heated to reflux for 22 hours. The mixture was cooled down to room temperature and quenched with brine, extracted twice with Et2O, dried over MgSO4, filtered off and concentrated to give a crude which was further purified by flash chromatography with cyclohexane/AcOEt (98/2) to afford the title compound in 82% yield (E:Z=79:21). 1H NMR: 7.18 (s, IH), 5.99 (d, J=12.4, IH), 5.72 (dt, il=\2A, J2=6.1, IH), 4.76 (s, IH), 4.47 (s, IH), 2.68 (d, 3.4, IH), 2.17 (s, 3H), 2.12-2.01 (m, 2H), 1.81 (d, J=I.0, 3H), 1.73-1.63 (m, 3H), 1.43-1.39 (m, 2H), 1.27-1.18 (m, 2H), 1.02 (s, 3H).
13C NMR: 167.9, 165.5, 134.4, 130.6, 126.9, 120.7, 100.0, 46.9, 45.3, 45.0, 44.5, 37.0, 29.7, 23.6, 23.0, 20.8, 10.4.
Hi) Preparation of(2Z)-Acetic acid 2-methyl-5-(2-methyl-3-methylene-bicyclo[2.2.1] hept-2-exo-yl)-pent-2-enyl ester (VII)
Acetic acid 2-methyl-5-(2-methyl-3-methylene-bicyclo[2.2.1]hept-2-exo-yl)-penta-l,3- dienyl ester (6.80 g, 93% pure; 24.3 mmol0.18 mmol) was treated with
[(Cp*)Ru(COD)]BF4 (52 mg, 0.122 mmol) and maleic acid (230 mg, 1.95 mmol) in dry and degassed acetone (20 ml) at 600C under 4 bars of H2 for 24 hours. The product was extracted with pentane/5% NaOH, washed twice with saturated aqueous NaCl, dried
(Na2SO4) and bulb-to-bulb distilled: 6.80 g (81% Z and 5% E by GC; 92%). 1H NMR: 5.38 (t, J=7.1, IH), 4.73 (s, IH), 4.59 (s, IH), 4.45 (s, IH), 2.66 (br s, IH),
2.12-2.04 (m, 4H), 2.07 (s, 3H), 1.73 (d, J= 1.0, 3H), 1.69-1.61 (m, 3H), 1.45-
1.37 (m, 2H), 1.27-1.17 (m, 3H), 1.04 (m, 3H).
13C NMR: 171.1, 166.1, 131.4, 129.4, 99.7, 63.2, 46.8, 44.7, 44.6, 41.2, 37.1, 29.7, 23.7,
23.4, 22.6, 21.5, 21.0.

CAS number 77-42-9
EC number 201-027-2
Jmol-3D images Image 1
Molecular formula C15H24O
Molar mass 220.35 g mol−1
Appearance Liquid
Density 0.9717 g/cm3
Boiling point 177 °C (351 °F; 450 K)
Solubility in water Practically insoluble
Solubility in ethanol Soluble
Solubility in diethyl ether Soluble
Related compounds
Related terpenes α-Santalol
Except where noted otherwise, data are given for materials in their standard state (at 25 °C (77 °F), 100 kPa)
Biocatalyst mediated regio- and stereo-selective hydroxylation and epoxidation on (Z)-α-santalol were achieved for the first time, using a fungal strain Mucor piriformis. Four novel metabolites were characterized as 10,11-cis-β-epoxy-α-santalol, 5α-hydroxy-(Z)-α-santalol, 10,11-dihydroxy-α-santalol and 5α-hydroxy-10,11-cis-β-epoxy-α-santalol. Using Amano PS lipase from Burkholderia cepacia, α- and β-isomers of 10,11-cis-epoxy-α-santalol were resolved efficiently.

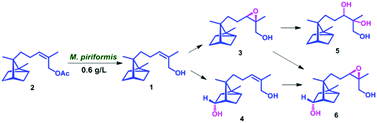

Graphical abstract: Biocatalyst mediated regio- and stereo-selective hydroxylation and epoxidation of (Z)-α-santalol
