Monday, 29 December 2014

Process for the preparation of fluvoxazmine maleate US 6433225 B1


Fluvoxamine2DACS.svg


Fluvoxamine


2-{[(E)-{5-Methoxy-1-[4-(trifluoromethyl)phenyl]pentylidene}amino]oxy}ethanamine[1]
Clinical data
Trade namesFaverin, Fevarin, Floxyfral, Luvox
AHFS/Drugs.commonograph
MedlinePlusa682275
Pregnancy cat.
  • C
Legal status
RoutesOral
Pharmacokinetic data
Bioavailability53% (90% confidence interval: 44-62%)[2]
Protein binding80%[2]
MetabolismHepatic (via cytochrome P450enzymes. Mostly via oxidative demethylation)[2]
Half-life12-13 hours (single dose), 22 hours (repeated dosing)[2]
ExcretionRenal (98%; 94% as metabolites, 4% as unchanged drug)[2]
Identifiers
CAS number54739-18-3 Yes
ATC codeN06AB08
PubChemCID 5324346
DrugBankDB00176
ChemSpider4481878 Yes
UNIIO4L1XPO44W Yes
KEGGD07984 Yes
ChEBICHEBI:5138 Yes
ChEMBLCHEMBL814 Yes
Chemical data
FormulaC15H21F3N2O2
Mol. mass318.335









Process for the preparation of fluvoxazmine maleate
US 6433225 B1
http://www.google.co.in/patents/US6433225


U.S. Pat. No. 4,085,225 discloses the process for the preparation of fluvoxamine maleate, a compound of formula I, by alkylation reaction of 5-methoxy-4′-trifluoromethylvalerophenone oxime, a compound of formula II, with 2-chloroethylamine hydrochloride in dimethylformamide in the presence of a base viz. potassium hydroxide for two days at 25° C.

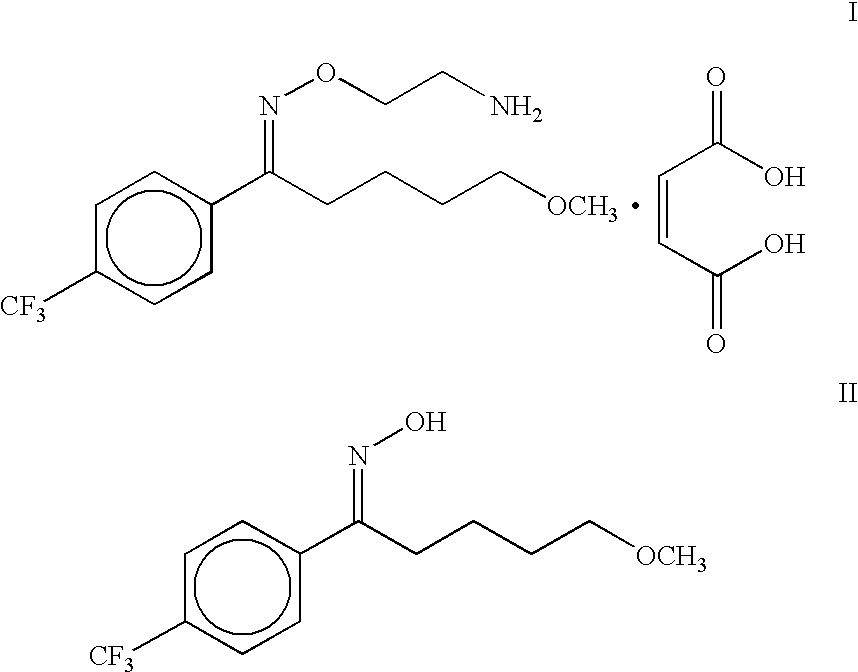

Figure US06433225-20020813-C00002
Subsequently the solvent is removed under vacuum then the residue is acidified and extracted with ether to remove the unreacted oxime. The fluvoxamine base is then obtained by extraction into ether after basification, and the ether extract is washed with NaHCOsolution. The fluvoxamine base is then treated with maleic acid in ethanol, and the residue obtained by concentration under vacuum is recrystallised from acetonitrile to obtain fluvoxamine maleate I. This process when attempted by us was found to be very time consuming. Moreover, the requirement of various solvents posed the problem of their recovery and re-usability.
In an alternate route described in the above mentioned patent, the oxime II is converted to I in a five step process viz., alkylation of II with ethylene oxide to give the hydroxyethyl compound III, which is converted to a mesylate derivative IV with methanesulfonyl chloride and triethylamine, and then aminated with ammonia to give fluvoxamine base.
Figure US06433225-20020813-C00003
The base is then converted to the maleate salt I, which is finally purified by recrystallization from acetonitrile.
Although in principle, the process described gives the desired product, viz. fluvoxamine maleate I, it was not found to be attractive as it involves a number of unit operations, use of several solvents, and handling of toxic and explosive ethylene oxide, a potential carcinogen. The number of operations used result in long occupancy of reactors and utilities, and high-energy consumption making it a commercially unviable process on a large scale. Also, for large-scale operations, the use of several different solvents in the process poses ecological and other usual problems such as storage, their recovery and re-usability. Furthermore, purification of the intermediate III requires cumbersome technique viz. chromatography over silica gel.
The lengthy work-up procedure in U.S. Pat. No. 4,085,225 requires complete removal of organic solvents at different stages; a simple and efficient process has been found wherein:
(a) the alkylation reaction could occur very rapidly in a water immiscible inert aprotic solvent in the presence of a facilitator;
(b) the unwanted reaction components i.e. the excess base, salts and the added facilitator could be easily removed in one step by washing the reaction mixture with water;
(c) the organic layer containing fluvoxamine base treated with maleic acid; and

(d) the fluvoxamine maleate obtained in a substantially pure form by recrystallization.


EXAMPLE 1To a stirred mixture of toluene (1.20 lit.), PEG-400 (0.4 lit) and powdered potassium hydroxide (86.0 g on 100% basis, 1.53 mol.) at ambient temperature is added 5-methoxy-4′-trifluoromethylvalerophenone oxime (100 g, 0.363 mol.), followed by 2-chloroethyl amine hydrochloride (50.56 g, 0.435 mol.). The mixture is stirred at 30-35° C. for 2 hours. Water (1.2 lit.) is then added, stirred for 30 mins. and the aqueous layer is separated out. The organic layer is washed with water (˜3×500 ml) until the washings are neutral. To the washed organic layer is added a solution of maleic acid (14.14 g, 0.363 mol.) in water (65 ml) and the mixture is stirred at 25-30° C. temperature for 2 hours, then cooled to 5-10° C. when the maleate salt crystallizes out. The crystallized fluvoxamine maleate is filtered, washed with toluene (200 ml) and sucked to dryness. The crude fluvoxamine maleate thus obtained is dissolved in water (300 ml) at 50-55° C. to get a clear solution, then gradually cooled to 5-8° C. and then further stirred at this temperature for 2 hours. The recrystallised fluvoxamine maleate is filtered, washed with chilled water (5° C., 100 ml) and sucked dry. The product is finally dried at 50-55° C. to constant weight. The fluvoxamine maleate obtained complies with the specifications of British Pharmacopoeia, 1999.
EXAMPLE 2This process when scaled up in pilot plant on 4.0 kg scale input of 5-methoxy-4′-trifluoromethylvalerophenone oxime gave 4.5 kg (71.2%) of fluvoxamine maleate, complying to the specifications of British Pharmacopoeia, 1999.

PATENT CITATIONS
Cited PatentFiling datePublication dateApplicantTitle
US408522519 Mar 197618 Apr 1978U.S. Philips CorporationOxime ethers having anti-depressive activity

NON-PATENT CITATIONS
Reference
1*Database CAPLUS on STN, Acc. No. 1977:72203, "Substituted 4'-trifluoromethylvalerophenone O-(2-aminoethyl)oxime derivatives with antidepressive action.' NL 7503310 (abstract).*
2Database CAPLUS on STN, Acc. No. 1977:72203, ‘Substituted 4'-trifluoromethylvalerophenone O-(2-aminoethyl)oxime derivatives with antidepressive action.’ NL 7503310 (abstract).*
3*Database CAPLUS on STN, Acc. No. 1982:562585, Welle et al., "Oxime ether compounds.' CH 629761 (abstract).*
4Database CAPLUS on STN, Acc. No. 1982:562585, Welle et al., ‘Oxime ether compounds.’ CH 629761 (abstract).*
5*Database CAPLUS on STN, Acc. No. 1997:403525, Matarrese et al., "Synthesis of [O-methyl-11-C]fluvoxamine-a potential serotonin uptake site radioligand.' Appl. Radiat. Isot. (1997), 48(6), pp. 749-754 (abstract).
6Database CAPLUS on STN, Acc. No. 1997:403525, Matarrese et al., ‘Synthesis of [O-methyl-11-C]fluvoxamine—a potential serotonin uptake site radioligand.’ Appl. Radiat. Isot. (1997), 48(6), pp. 749-754 (abstract).

REFERENCED BY
Citing PatentFiling datePublication dateApplicantTitle
US20110092548 *21 Jul 200621 Apr 2011Takuro MinowadaMethod for treating/preventing disease using cognitive ability of cerebrum and pharmaceutical
WO2014035107A1 *27 Aug 20136 Mar 2014Estechpharma Co., Ltd.Method for purifying fluvoxamine free base and method for preparing highly pure fluvoxamine maleate using same


MORE.............

Fluvoxamine
Fluvoxamine is an antidepressant drug consisting of an oxime ether functions which can exist in an E and Z configuration. The pharmacological effect is associated with the E-isomer; thus, the European Pharmacopoeia limits the Z-isomer to less than 0.2 percent. The 1H NMR spec-trum of a 1: 1 mixture (for spectrum and structural formula see Fig. 2) reveals the resonance signals of the hydrogen at C10 (δ = 4.2-4.5 ppm) and C2 (δ = 2.5-3.0 ppm) to be well separated and, therefore, appropriate for evaluation. In order to find out the optimal pulse repetition period the T1 relaxation time was measured first. A recovery of the z-magnetization of > 99.9% was achieved using seven times the longest T1 which results in a pulse repetition time of 8 sec. Using the optimized parameter (see below) and after checking the linearity, the limit of quantification of the Z-isomer could be determined to be 0.15 %, which meets the limit demanded by the European Pharmacopoeia. For details see ref. [6].
Figure 2: 1H NMR spectrum of a mixture of the isomers of fluvoxamine, containing 47.6% E-fluvoxamine
and 53.2% Z-fluvoxamine, in MeOH-d4

Parameters fluvoxamine:

Bruker Avance 400 MHz operating at 400.13 MHz equipped with BBO-head for ( 1H-channel, X-channel). The data processing was performed using BRUKER X-WIN NMR 3.0 software under Microsoft Windows.
Pulse repetition period:8 sec
Number of scans:128
Spectral width:4595 Hz
Transmitter offset:2.76 ppm
Digital resolution:0.14 Hz/pt
Solution:15 mg fluvoxamine in 650µl MeOH-d4
Referencing:centre of the solvent peak: 3.31 ppm
