Apixaban preparation process WO 2012168364

Publication number	WO2012168364 A1
Publication type	Application
Application number	PCT/EP2012/060800
Publication date	Dec 13, 2012
Filing date	Jun 7, 2012
Priority date	Jun 10, 2011
Also published as	EP2718262A1, US8884016, US20140058107,US20150025242
Inventors	Chiara Vladiskovic, Emanuele Attolino,Alessandro Lombardo, Simone TAMBINI
Applicant	Dipharma Francis S.R.L.
External Links: Patentscope, Espacenet

http://www.google.com/patents/WO2012168364A1?cl=en

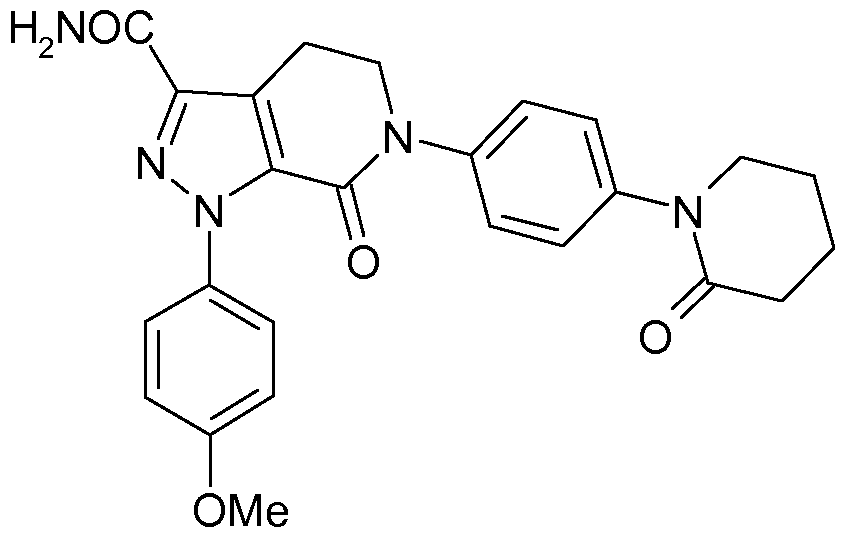

l-(4-Methoxyphenyl)-7-oxo-6-[4-(2-oxopiperidin-l -yl)phenyl]-4, 5,6,7- tetrahydro- lH-pyrazolo[3,4-c]pyridine-3-carboxyamide of formula (I), also known come apixaban, is a powerful inhibitor of coagulation factor Xa disclosed in US 6,967,208. Said compound is used in the prevention and treatment of thromboembolic disorders.

(I)

US 7, 153,960 discloses a process for the preparation of apixaban wherein the key step is the formation of intermediate (A) by 1 ,3 dipolar cycloaddition reaction between the compounds of formula (B) and (C) and its subsequent conversion to the compound of formula (D) by treatment with an acid. The compound of formula (D), after simple manipulations of functional groups, is converted to apixaban

B C A D

Said patent discloses the preparation of the compounds of formula (B) and (C). While the synthesis of the hydrazone of formula (B) has been known for some time, the preparation of the key intermediate of formula (C) is complex and uses reagents which are expensive and potentially hazardous, such as phosphorus pentachloride (PC1₅), and drastic reaction conditions.

US 7, 153,960, for example, discloses as preferred the preparation of an enamine intermediate of formula (C) wherein the amine residue NR_bR_c is a morpholine. The conditions used for the success of the reaction actually involve the use of morpholine as solvent at high temperatures, such as reflux temperature (about 130- 135°C).

The complexity of the known processes for the preparation of the intermediate of formula C, the expense and danger of the reagents and the drastic reaction conditions used make said processes difficult to apply and scale up industrially, especially for the purpose of preparing the intermediates of formula A and D and apixaban.

There is consequently a need for an alternative method for the preparation of apixaban and its intermediates which does not involves the problems described above. Said method should in particular be more industrially scalable, allow the desired compounds to be obtained with high yields, and use cheaper reagents which are simpler to handle, also using mild reaction conditions.

Example 6. Synthesis of compound of formula (I): l-(4- Methoxyphenyl)-6-[4-(2-oxo-piperidinyl)phenyl]-7-oxo-4,5,6,7-tetrahydro- l//-pyrazolo[3,4-c]pyridine-3-carboxyamide: Apixaban (I)

The compound of formula II, prepared as in Example 5 (17.50 g, 35.82 mmol), is suspended in 100 ml of 33% NH₃ and 200 ml of MeOH in a 1L 4-necked flask equipped with coolant, thermometer and magnetic stirrer, in nitrogen atmosphere, and heated to 45°. MeOH (250 ml) is added until completely dissolved, and the solution is left under stirring for 2h. Another addition of 33% NH₃ (50 ml) is performed, and the progress of the reaction is monitored by TLC (AcOEt/MeOH 9: 1) and HPLC. After 18h the solvent is evaporated under low pressure, and the solid residue obtained is suspended in 200 ml of H₂O and left under stirring for 2h. The white solid is filtered through a Buchner funnel, and washed with H₂O (50 ml). The product of formula (I) is stove-dried at 50°C to a constant weight (12.60 g, yield 76%). The HPLC purity of the product exceeds 99%.

1H NMR (300 MHz, CDC1₃): 67.47 (2H, dd, J₀=8.7 Hz, Ar-H), 7.31

(2H, dd, J₀=8.7 Hz, Ar-H), 7.23 (2H, dd, J₀=8.7 Hz, Ar-H), 6.93 (2H, dd, J₀=8.7 Hz, Ar-H), 6.83 (1H, s, N-H), 5.53 (1H, s, N-H), 4.1 1 (2H, t, J=6.6 Hz, CH₂CH₂N), 3.81 (3H, s, Ar-OCH₃), 3.59 (2H, m, NCH₂CH₂CH₂CH₂CO) 3.37 (2H, t, J=6.6 Hz, CH₂CH₂N), 2.55 (2H, m, NCH₂CH₂CH₂CH₂CO), 1.93 (4H, m, NCH₂CH^CH₂CH₂CO).


Preparation of intermediates

Example 1. Synthesis of a compound of formula (III): l-(4-Iodophenyl)-3-trimeth lsilyloxy-5,6-dihydro-l -pyridin-2-one (Ilia)

v in

The compound of formula V (2.00 g, 6.35 mmol) is suspended in 15 ml of toluene in a 50 ml 3-necked flask equipped with coolant, thermometer and magnetic stirrer, in nitrogen atmosphere. Triethylamine (1.15 ml, 8.26 mmol) is added, and the mixture is cooled to 0°C. Chlorotrimethylsilane (0.97 ml, 7.64 mmol) is added drop by drop at a temperature of under 5°C. After the addition, the temperature is increased to 50°C, and after 5h the reaction mixture is cooled to room temperature, diluted with toluene (30 ml) and washed with H₂O (1x10 ml) and a saturated solution of NaCl (1x10 ml). The organic phase is anhydrified on (Na₂SO₄), filtered and evaporated under low pressure. Compound (III) is obtained as a brown solid (2.23 g, yield 90%), which is used for the next stage without further purification.

1H NMR (300 MHz, CDC1₃): 6 7.67 (2H, dd, J=8.1 Hz, Ar-H), 7.06 (2H, dd, J=8.1 Hz, Ar-H), 5.81 (1H, t, J=4.8 Hz, CHCOSiMe₃), 3.77 (2H, t, J=6.9 Hz, N-CH₂), 2.48 (2H, m, ΟΗ₂¾ϋΗ), 0.23 (9H, s, CHCOSi(CH₃ ).
